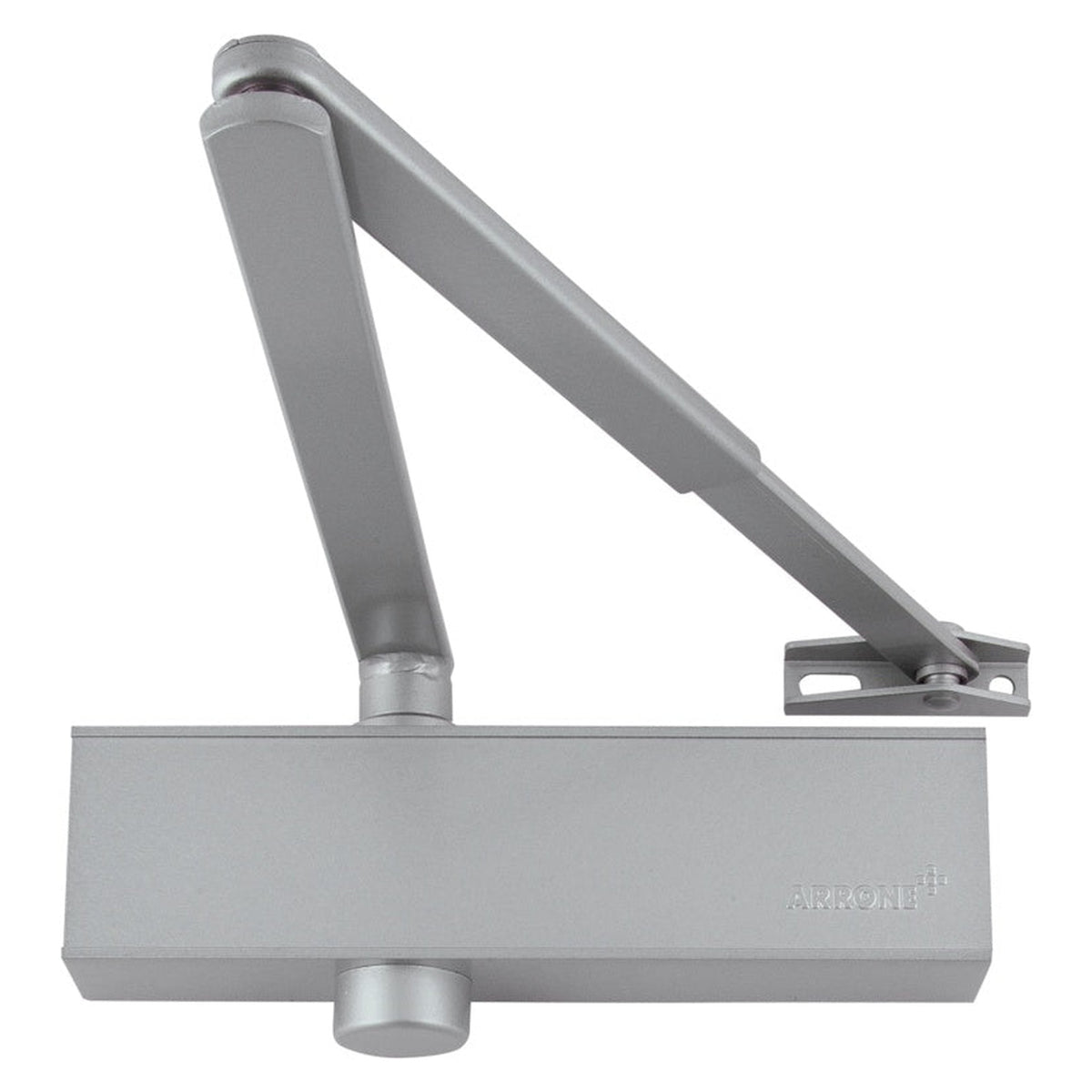

Arrone Silver Door Closer, Power Size 2 to 4, Fire Door Rated

The Arrone silver fire door closer has an adjustable power size from 2 to 4, set by template. It suits doors up to 1,100mm wide and 80kg, is type tested to BS EN 1154:1997 and is assessed for 30, 60 and 120 minute timber fire doors and 240 minute steel fire doors.

Key features of this adjustable door closer

• Adjustable power size 2 to 4
• Maximum door width 1,100mm, weight 80kg
• BS EN 1154:1997 type tested
• Assessed for 30, 60 and 120 minute timber fire doors and 240 minute steel fire doors
• CE and UKCA marked, Certifire approved

Specifications

Which power size do I need?

Set the power by template to suit the door: heavier and wider doors need a higher power size within the 2 to 4 range.

How to fit

1. Use the template to mark the closer and arm positions.
2. Fix the body and arm, then set the power size.
3. Follow the instructions, or use a competent fitter for fire doors.

FAQs

Is the Arrone door closer suitable for fire doors?

It was assessed for timber and steel fire doors, so check the listed ratings.

What is the maximum door width?

1,100mm.
