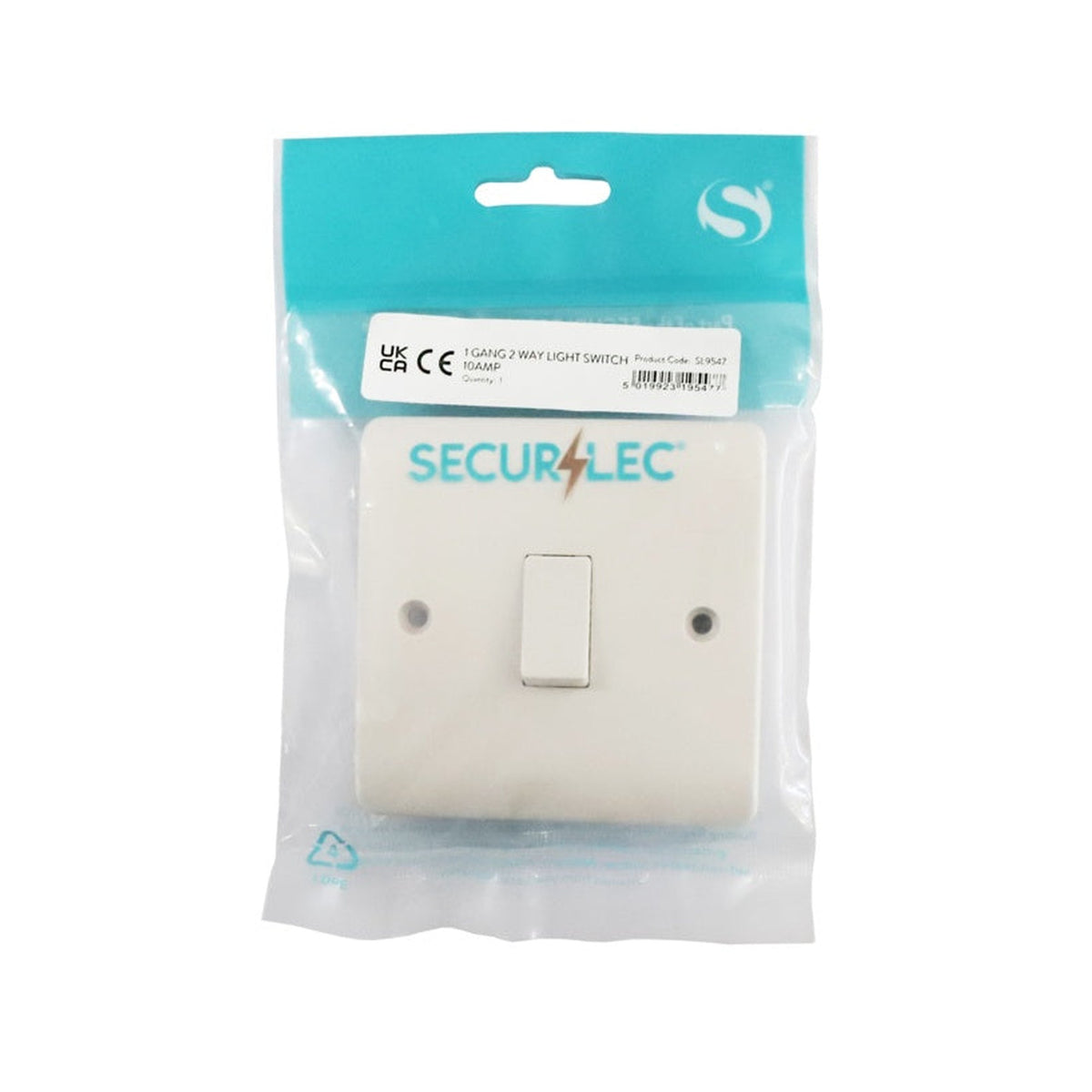

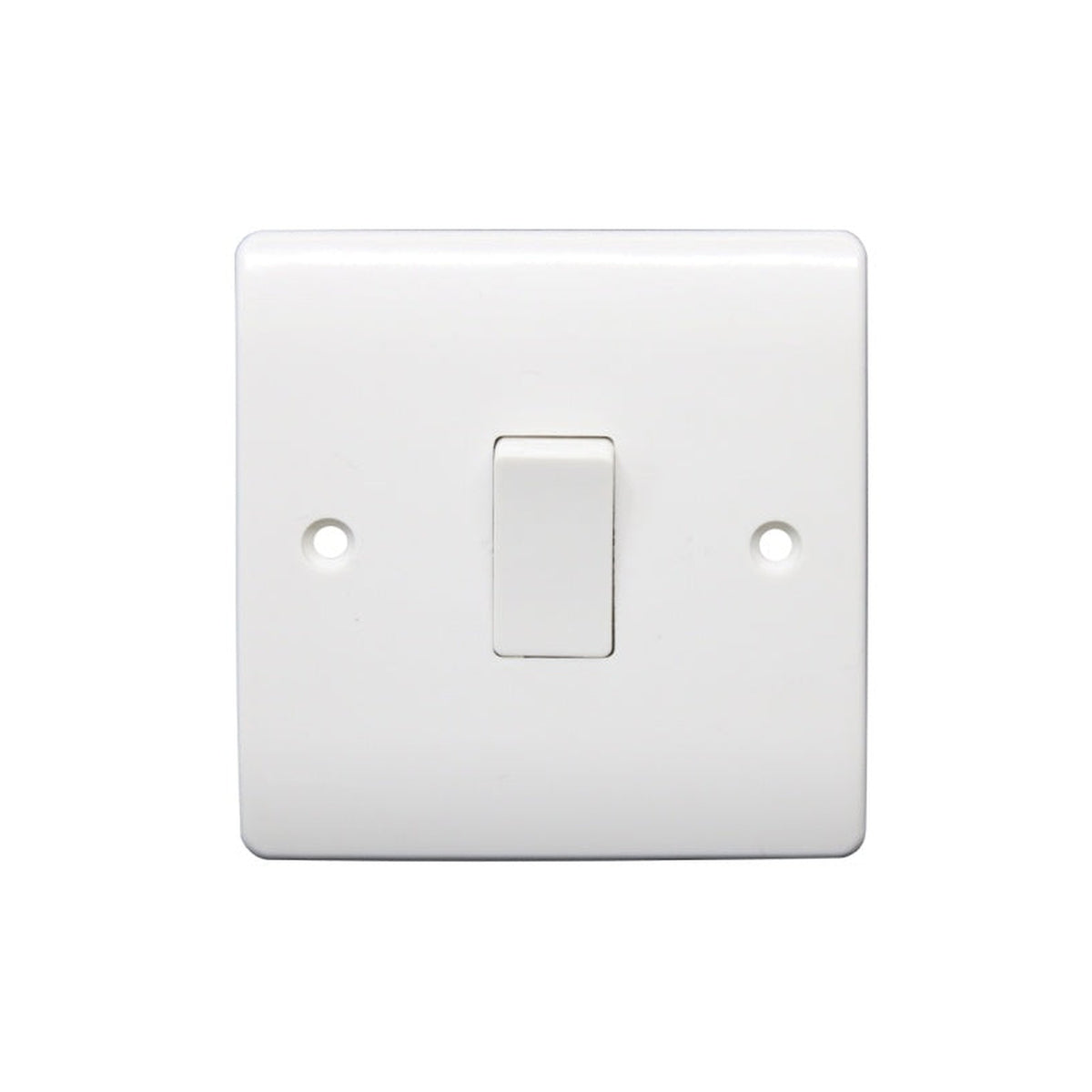

Securlec 1 Gang 2 Way Light Switch Round Edge 10A

This 2 way light switch from Securlec is a 1 gang, 10A, 250V switch with a round edge. The face plate is 86 x 86mm in urea-formaldehyde and the switch meets BS EN 60669-1. It has dual earth terminals and large angled top access terminals.

Key features

• 1 gang, 2 way, 10A 250V
• 86 x 86mm, urea-formaldehyde face plate
• BS EN 60669-1
• Dual earth terminals, large angled top access terminals
• Min wall box depth 25mm, IP20
• One size screwdriver needed

Specifications

Which one do I need?

2 way means two switches can control one light, for example at the top and bottom of a staircase. The minimum wall box depth is 25mm and IP20 means indoor use only.

How to use

1. To begin, switch off the circuit and check that it is dead before you start work on the light switch.
2. After that, compare the switch plate with the wall box before you disconnect anything.
3. Following that, wire each conductor to its terminal, following the terminal markings on the switch.
4. To finish, screw the plate down, switch the supply back on and check it works.

FAQs

Which BS standard covers this 2 way light switch?

BS EN 60669-1.

How deep must the wall box be?

At least 25mm.

Who should fit it?

A qualified electrician.
