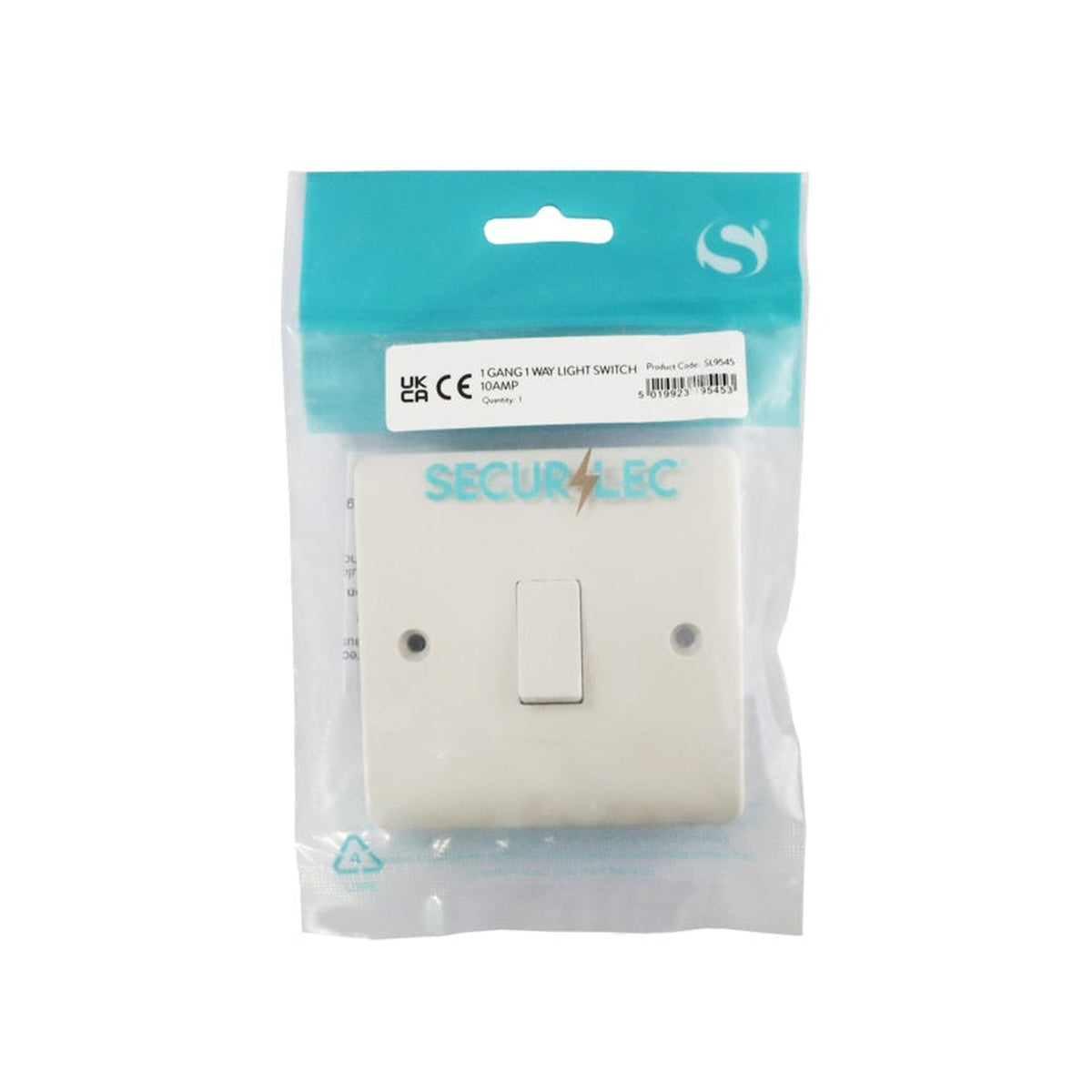

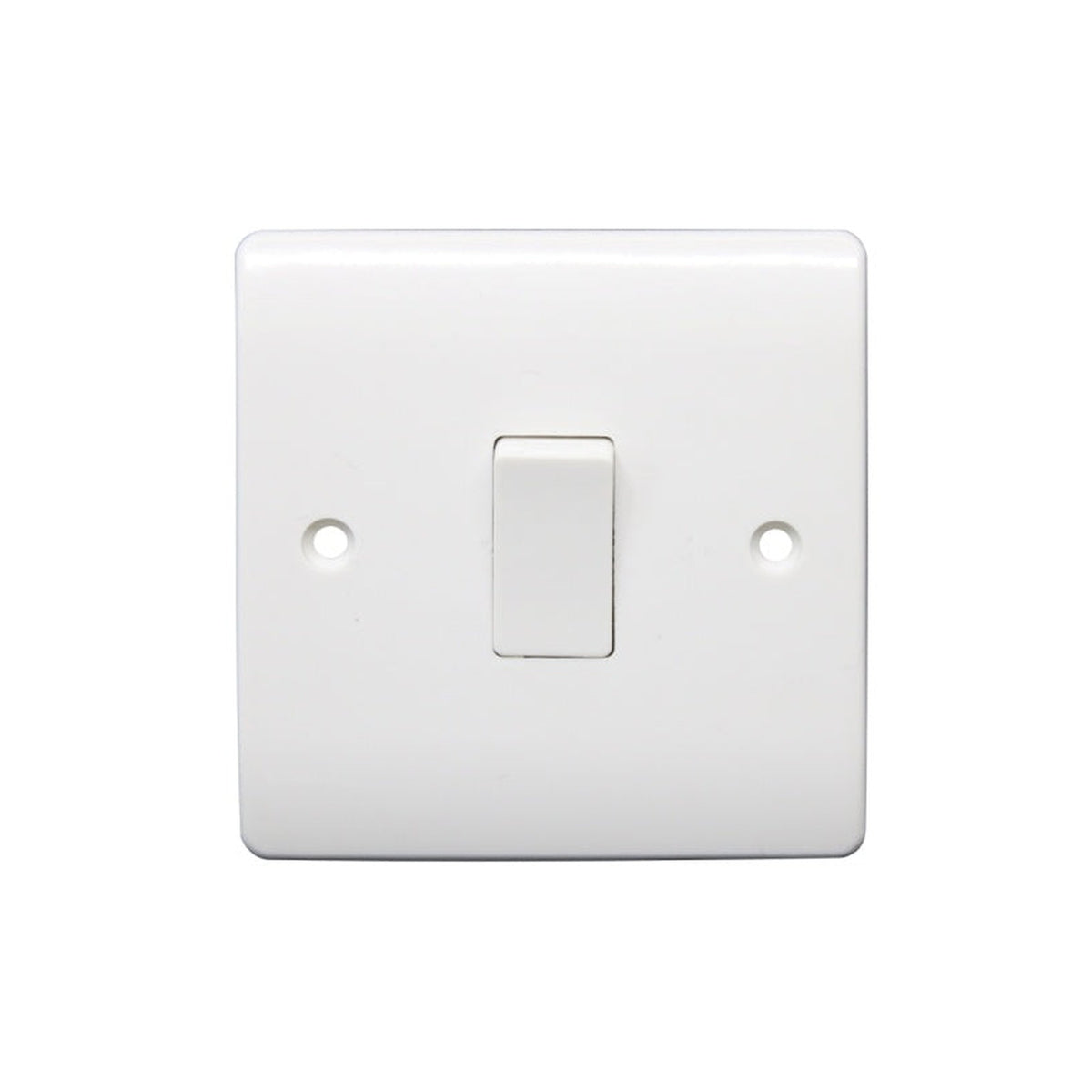

Securlec 1 Way 1 Gang Light Switch, Round Edge, 10A

This 1 gang light switch from Securlec is a 1 way, 10A switch with a round edge on an 86 x 86mm plate. It is rated 250V, 50-60Hz, IP20 and meets BS EN 60669-1. The terminals take 4 x 1.5mm2, 2 x 2.5mm2 or 1 x 4.0mm2.

Key features

• 1 way, 1 gang, 10A
• 86 x 86mm, round edge
• 250V, 50-60Hz
• BS EN 60669-1
• IP20
• Terminal capacity: 4 x 1.5mm2, 2 x 2.5mm2 or 1 x 4.0mm2

Specifications

Which one do I need?

A 1 way switch controls a light from one place only. For control from two places you would want a 2 way switch.

How to use

1. Start here: turn the supply off and keep it off for the whole light switch job.
2. Then confirm the switch type and gang count match the circuit it will control.
3. From there, attach the cores to the right terminals and check every screw is tight.
4. Lastly, secure the plate, restore the supply and test the switch, using a qualified electrician where required.

FAQs

What rating does the 1 gang light switch have?

10A, 250V, 50-60Hz.

Which standard does it meet?

BS EN 60669-1.

Which terminal sizes does it take?

4 x 1.5mm2, 2 x 2.5mm2 or 1 x 4.0mm2.
