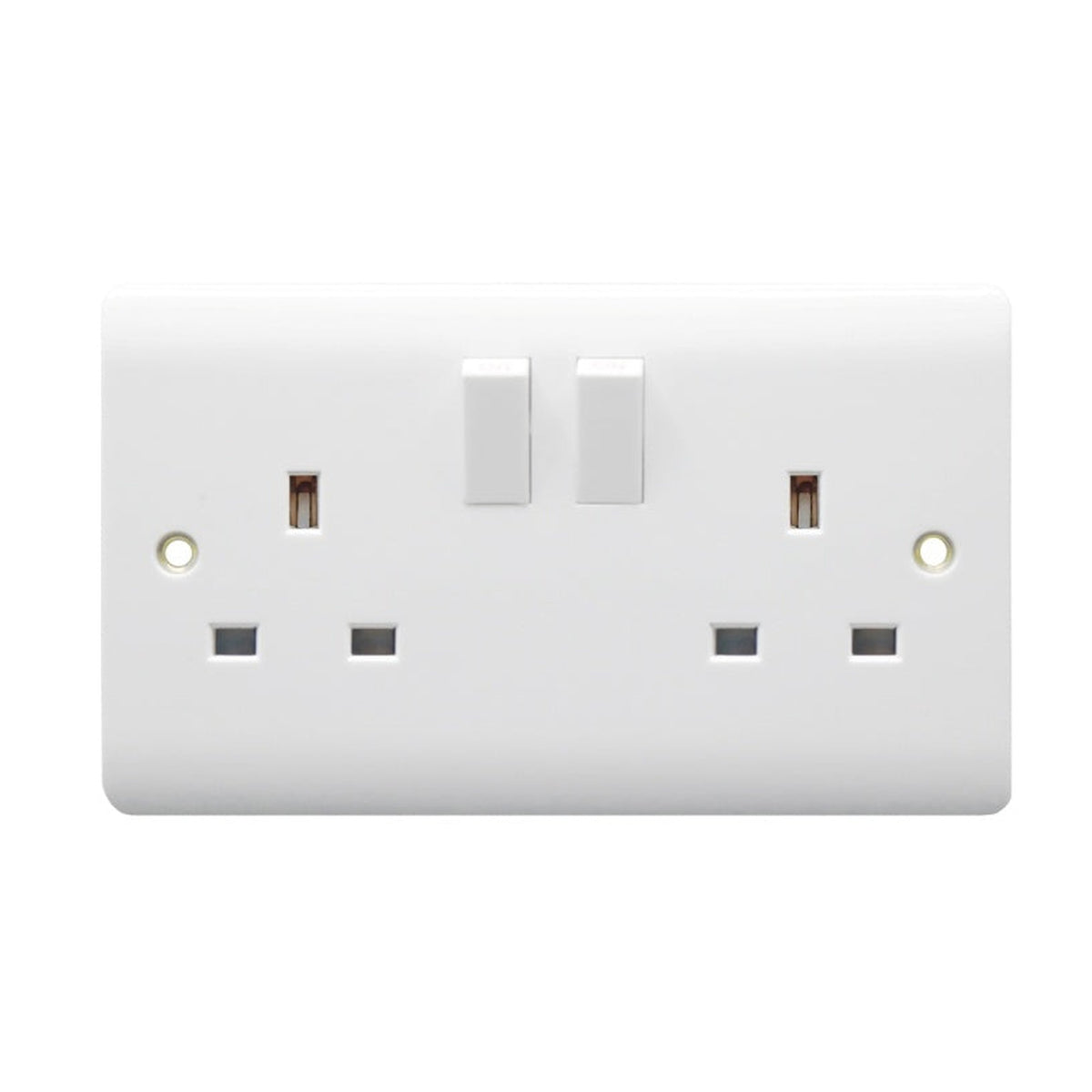

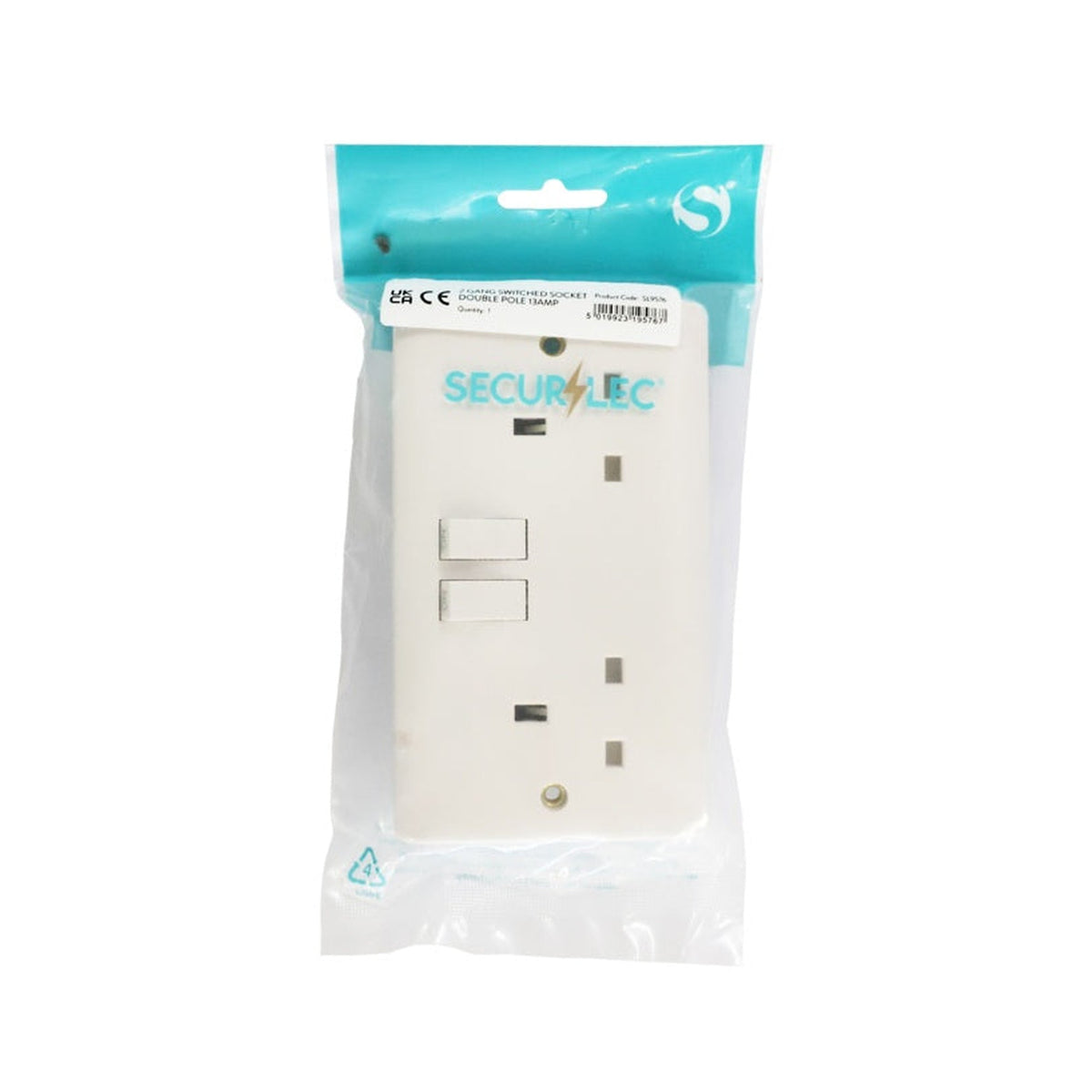

Securlec 2 Gang Double Pole Switched Socket, Round Edge

This double socket from Securlec is a 2 gang, 13A switched socket with a round edge and double pole switching. It is rated 250V, made to BS 1363-2 and has IP20 protection. The terminals take 3 x 2.5mm2, 3 x 4mm2 or 2 x 6mm2, and it needs a wall box at least 25mm deep.

Key features

• 2 gang, 13A, 250V
• To BS 1363-2
• Double pole switching
• IP20
• Terminal capacity 3 x 2.5mm2 or 3 x 4mm2 or 2 x 6mm2
• M3.5 x 30mm fixing screws
• Minimum wall box depth 25mm

Specifications

Which one do I need?

Check the wall box before you buy, because the minimum depth is 25mm and the fixing screws are M3.5 x 30mm. This is the round edge style, and a square edge double socket is listed separately.

How to use

1. First, isolate the supply at the consumer unit before you touch the socket.
2. Next, check the plate size and the wall box depth against the box already on the wall.
3. Once that is done, connect the live, neutral and earth conductors to the marked terminals and tighten each screw.
4. Finally, fix the plate to the box, restore the supply and test the socket.

FAQs

How deep must the wall box be for this double socket?

The minimum wall box depth is 25mm.

Which terminal sizes does it take?

3 x 2.5mm2, 3 x 4mm2 or 2 x 6mm2.

Is it for outdoor use?

No. The protection rating is IP20.
