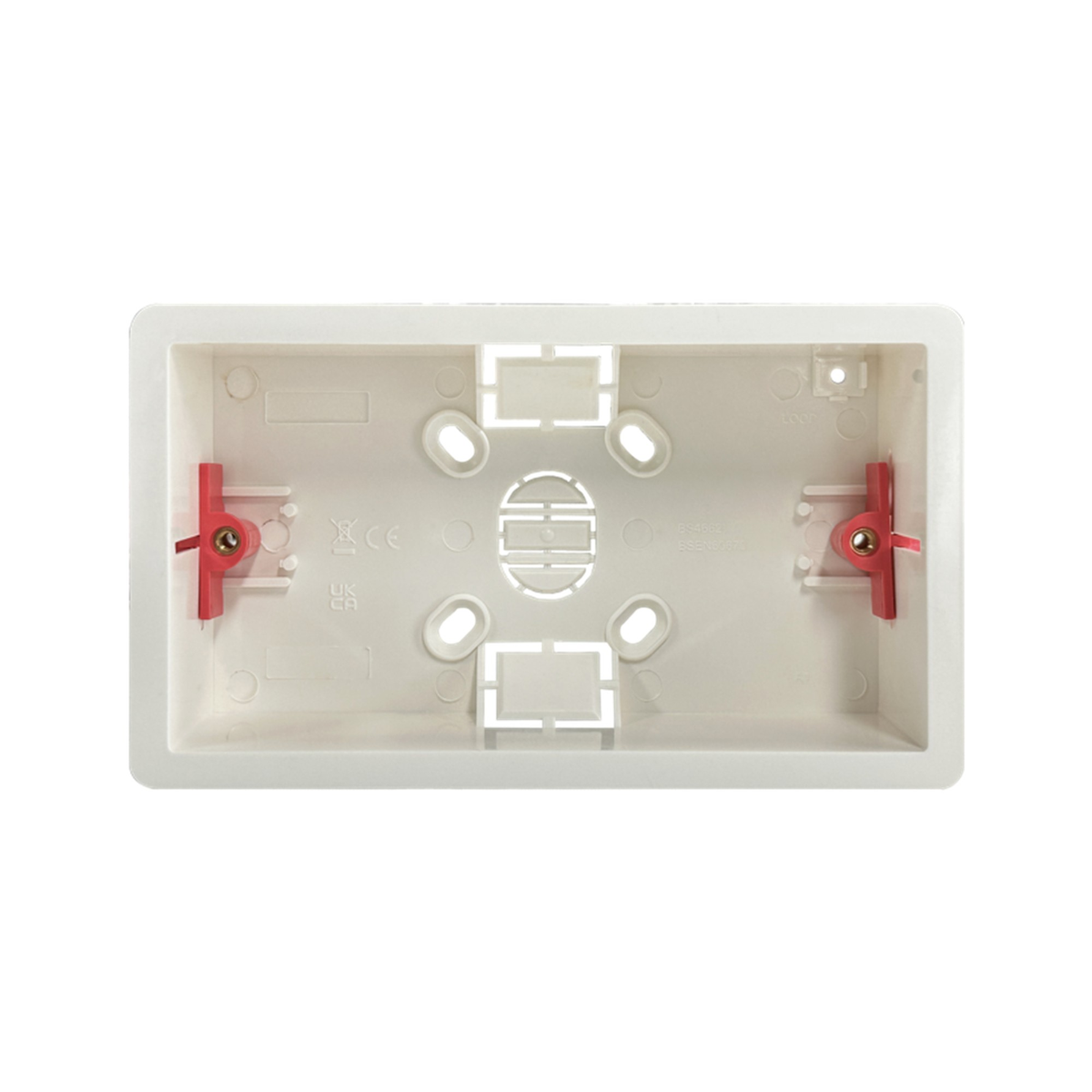

Securlec 2 Gang Dry Lining Box

The Securlec 2 gang dry lining box has a cut-out of 133 x 73mm and overall dimensions of 83mm high by 144mm wide. It is rated IP20 and meets BS 60670-1.

Key features

• 2 gang
• Cut-out 133 x 73mm
• Dimensions 83 x 144mm
• IP20, BS 60670-1

Specifications

Which one do I need?

Cut a 133 x 73mm opening and leave room for the 83 x 144mm outer size.

How to use

1. To begin, isolate the supply at the consumer unit before working near any wiring.
2. After that, check the depth and gang count suit the accessory and the cable you need to fit.
3. Following that, mark the position on the wall and make the opening or fixing points for the box.
4. To finish, pass the cable through an entry, leaving enough length to connect the accessory.

FAQs

What cut-out does the 2 gang dry lining box need?

133 x 73mm.

What are the overall dimensions?

83mm high by 144mm wide.

What standard and rating does it have?

IP20 and BS 60670-1.
