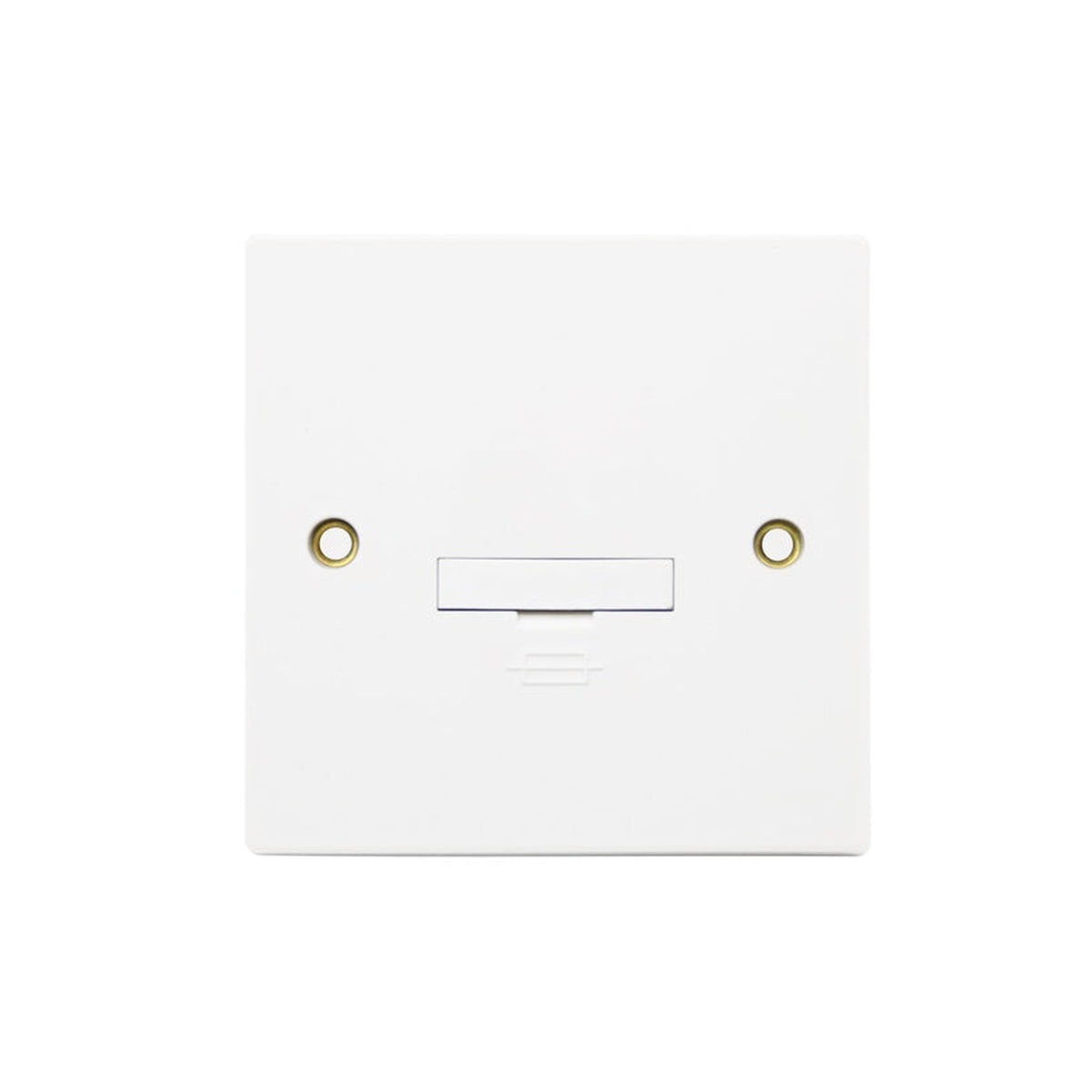

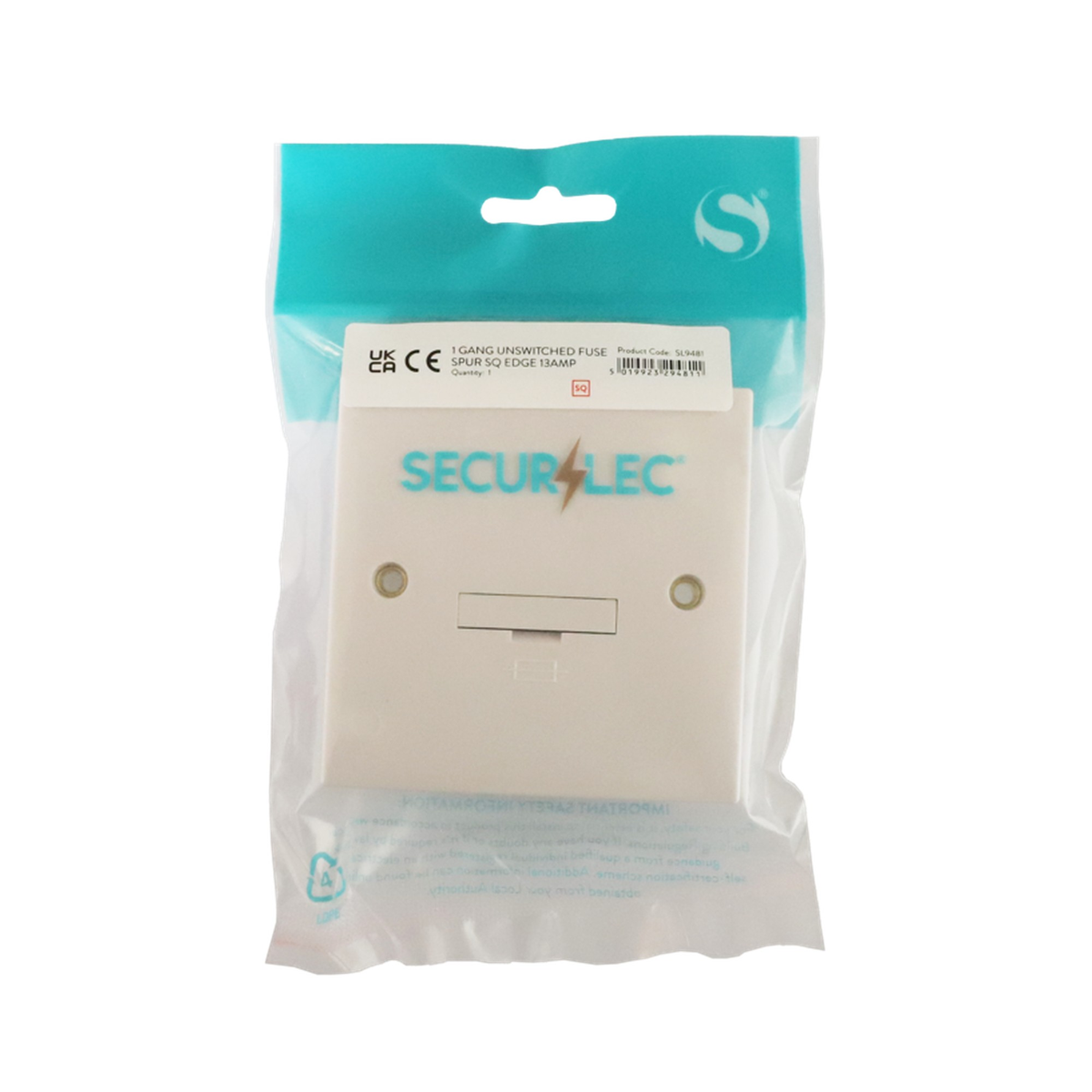

Securlec Square 1 Gang Unswitched Fused Spur - Square Edge

This unswitched spur from Securlec is a 1 gang, 13A fused spur on an 86 x 86mm square edge plate. The terminals are large, angled and top access, and the markings are heavily embossed. It also has dual earth terminals.

Key features

• 86 x 86mm, 13A
• Heavily embossed terminal marking
• Top access, large angled terminals
• Only one size of screwdriver needed
• Fixing screws maintained by earth strap
• Dual earth terminals
• Double pole switching

Specifications

Which one do I need?

This spur has no switch. It uses fixing screws held by the earth strap.

How to use

1. First, switch off the circuit and check that it is dead before you start work on the socket.
2. Next, compare the plate with the wall box before you disconnect anything.
3. Once that is done, wire each conductor to its marked terminal and check every screw is tight.
4. Finally, screw the plate down, switch the supply on and check it works.

FAQs

What current is the unswitched spur rated for?

13A.

What size is the plate?

86 x 86mm, square edge.

Is it a switched spur?

No, it is unswitched.
