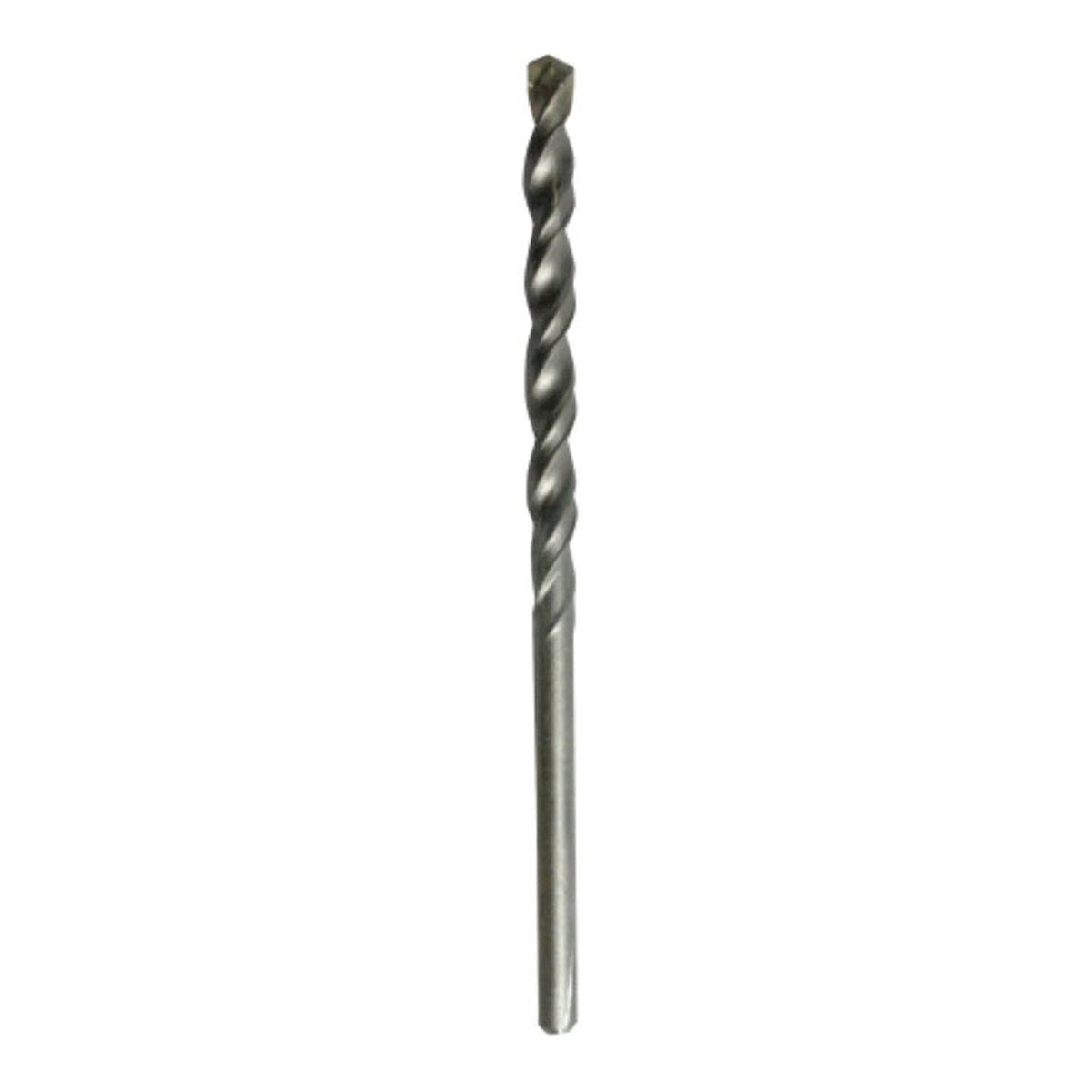

Rawlplug Impactor Masonry Drill Bit 6 x 150mm

The Rawlplug Impactor is a 6mm masonry drill bit, 150mm long, with a specially sharpened carbide plate for quick, cylindrical drilling. Its deep-seated carbide plate improves the connection with the drill core, and Rawlplug says it reduces the battery power used by 20% when drilling with a hammer cordless drill.

Key features

• Size 6 x 150mm
• Sharpened carbide plate for quick, cylindrical drilling
• Deep-seated carbide plate improves the connection with the drill core
• Reduces battery power used by 20% when drilling with a hammer cordless drill
• Heat treated steel hardened to 52 HRC

Specifications

Which one do I need?

This is the 6 x 150mm Impactor. Pick the 150mm length when your fixing needs a deeper hole or has to pass through a thick render. Both are aimed at hammer cordless drills, where the battery saving applies.

How to use

1. Scan the wall for pipes and cables before you start.
2. Fit the bit in the chuck and tighten it fully.
3. Mark the hole and begin slowly without hammer action to locate the tip.
4. Switch to hammer mode once the hole is started and keep the drill square to the wall.
5. Withdraw regularly to clear dust, and wear eye protection and a dust mask.

FAQs

What size is this 6mm masonry drill bit?

It is 6mm in diameter and 150mm long.

How does it save battery power?

Rawlplug says it reduces the battery power used by 20% when drilling with a hammer cordless drill.

How hard is the steel?

The steel is heat treated and hardened to 52 HRC.
