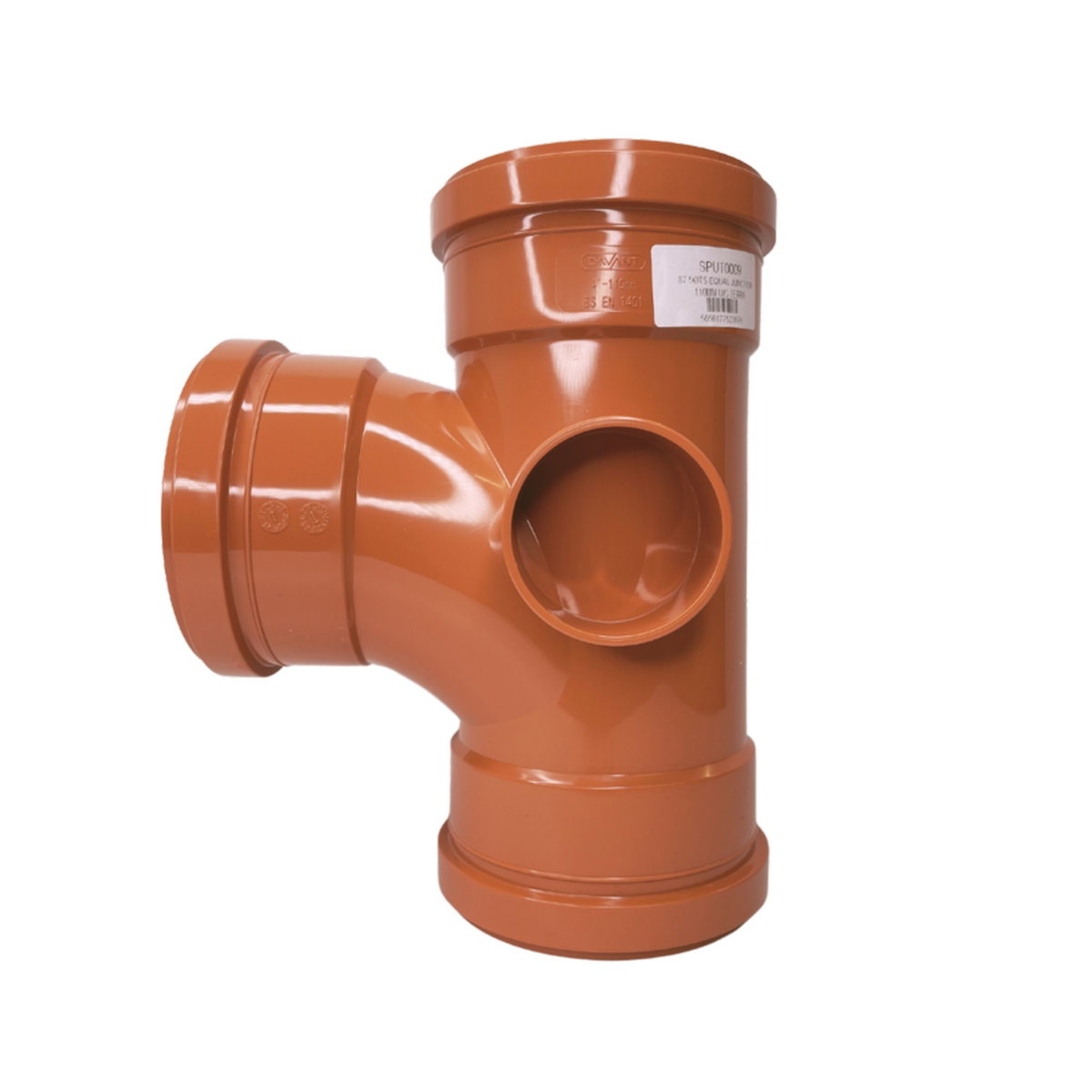

Davant Underground Equal Junction 87.5 Degree 110mm

This Davant equal junction 110mm joins a branch drain into a main underground run at 87.5 degrees. As an equal junction, the branch and the main run are the same size. This underground junction sits with the 110mm soil fittings and 110mm waste fittings in the Davant range, and the 87.5 degree junction angle gives the branch a slight fall into the main drain.

Junction features

• 110mm size
• 87.5 degree angle
• Equal junction
• Underground fitting

Specifications

Which one do I need?

Use an equal junction when the incoming branch is the same 110mm size as the main drain. It is meant for underground soil fittings rather than above-ground pipe.

Fitting the junction

1. Bed the junction on firm material in the trench.
2. Point the branch in the direction of flow.
3. Cut, chamfer and push the pipes into the sockets.
4. Check falls on both runs before backfilling.

FAQs

What angle is the junction?

87.5 degrees.

Is it an equal junction?

Yes, both sides are 110mm.

Is it for underground use?

Yes.
