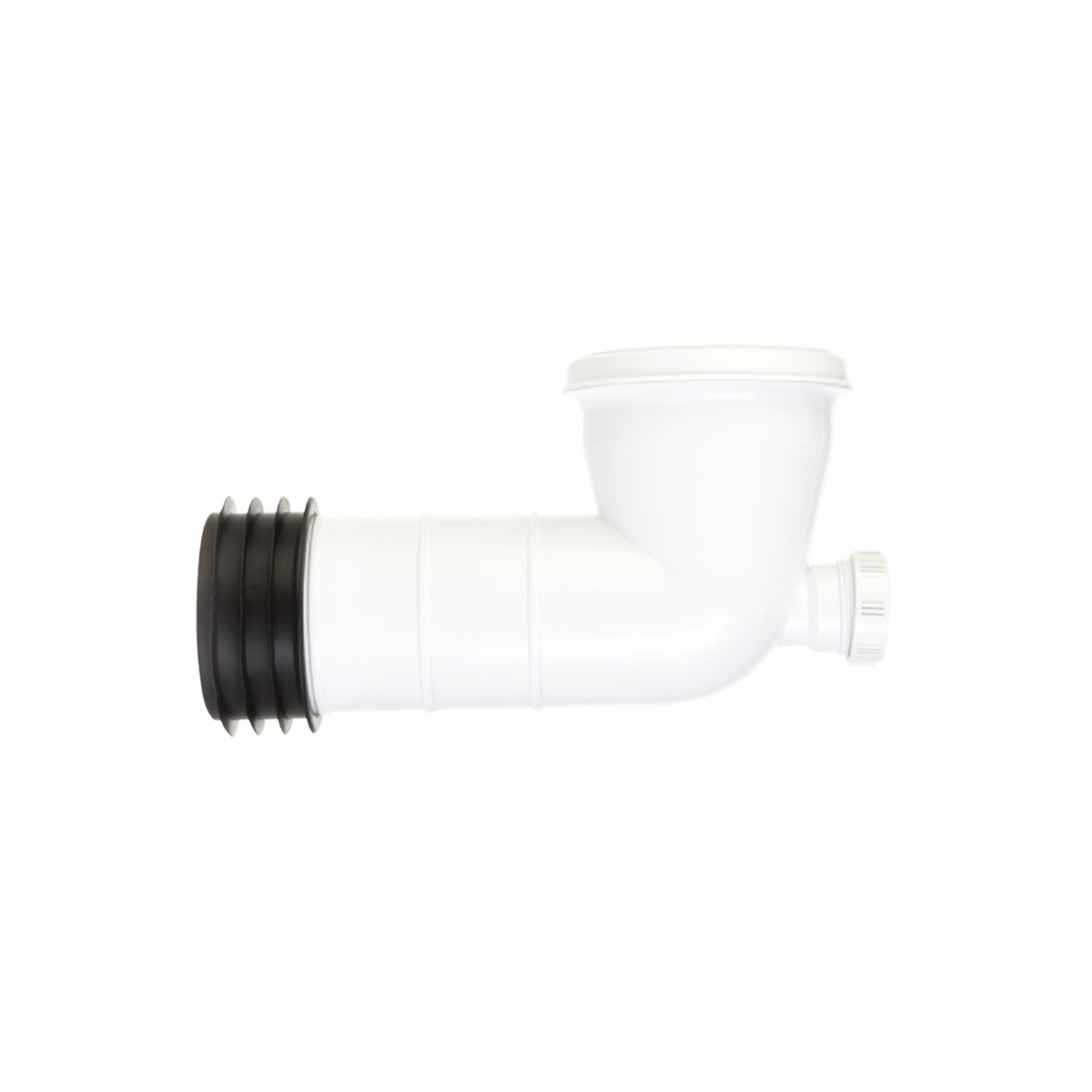

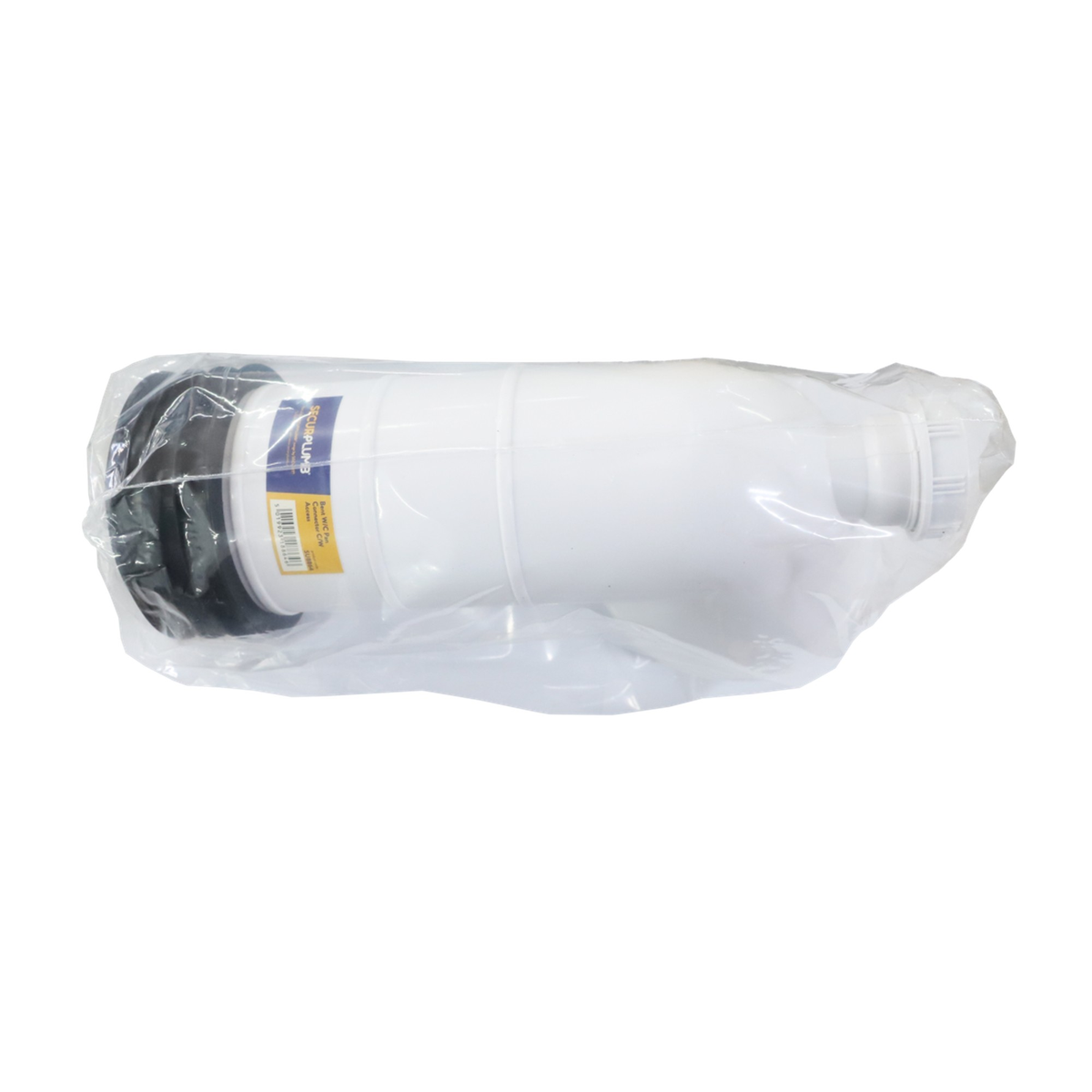

Securplumb Bent WC Pan Connector with Access

This Securplumb bent wc pan connector with access joins a toilet pan outlet to the soil pipe through a bend. The built-in access point lets you get into the connector to clear a blockage without taking the toilet off. A bent pattern WC connector is used where the soil pipe sits below or to one side of the pan outlet rather than straight behind it.

Connector features

• Bent pattern
• With access
• WC pan connector
• Made by Securplumb

Specification

Which one do I need?

Choose a bent connector when the soil pipe is not directly in line with the pan outlet. Pick one with access if you want an easier way to clear blockages later.

Fitting a toilet pan connector

1. Turn off the water and flush to empty the cistern.
2. Remove the old connector and clean the soil pipe socket.
3. Push the connector into the soil pipe with the access point where you can reach it.
4. Push the pan outlet into the connector, fix the pan and test.

FAQs

Does this wc waste connector have access?

Yes, it has an access point.

What pattern is it?

Bent.

Who makes it?

Securplumb.
